Facebook Instant Games 开发快速指南

开发者可以基于现有的Egret HTML5游戏迁移到Facebook Instant Games平台,也可以开发全新针对于Facebook Instant Games平台的HTML5游戏。

本指南旨在带领开发者快速使用Egret工具提交并测试Facebook Instant Games平台游戏,其涉及平台功能与规则限制,请参考Facebook官方文档。

创建 Facebook Instant Games 应用

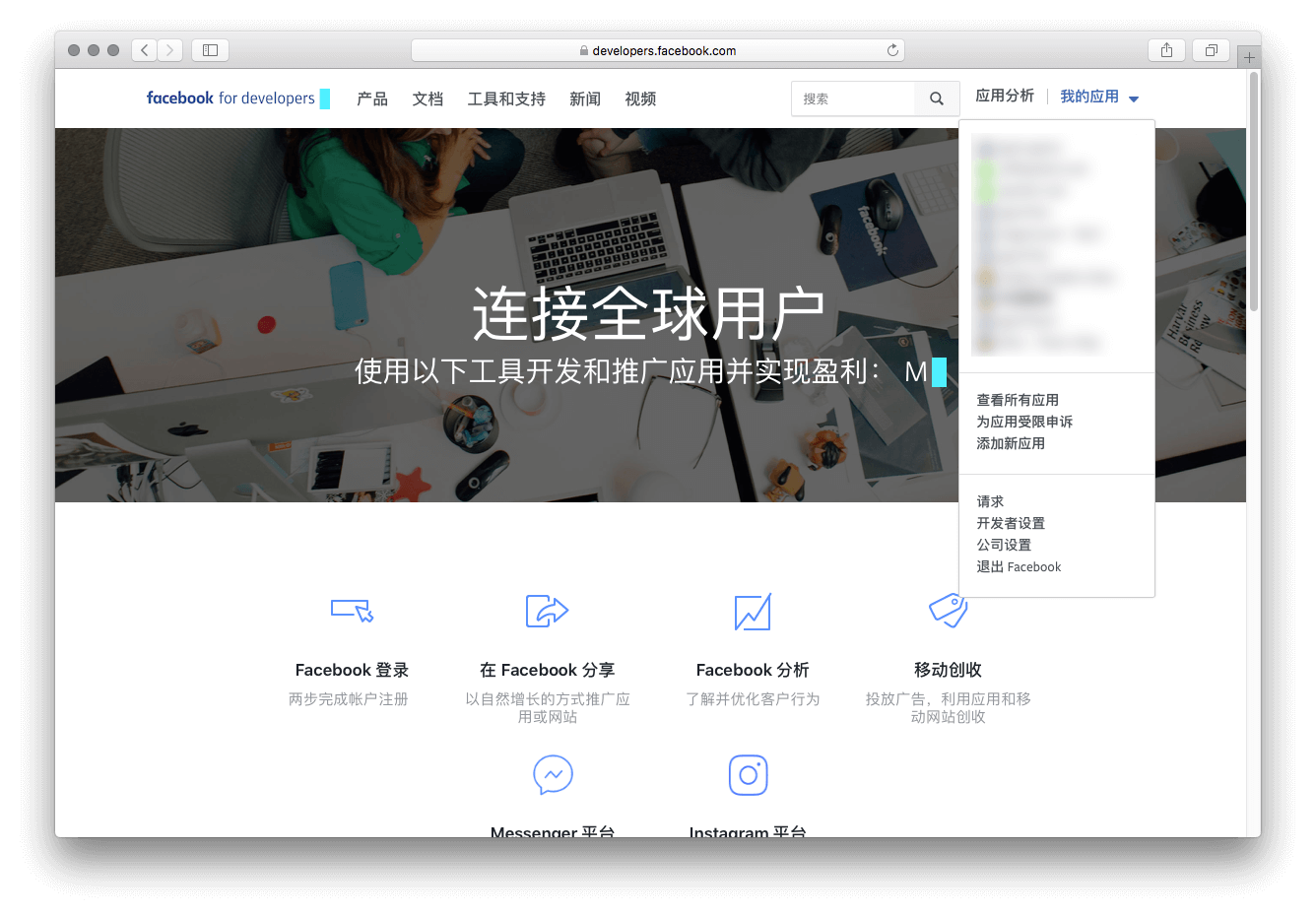

您需要在 https://developers.facebook.com 登录您的Facebook账号

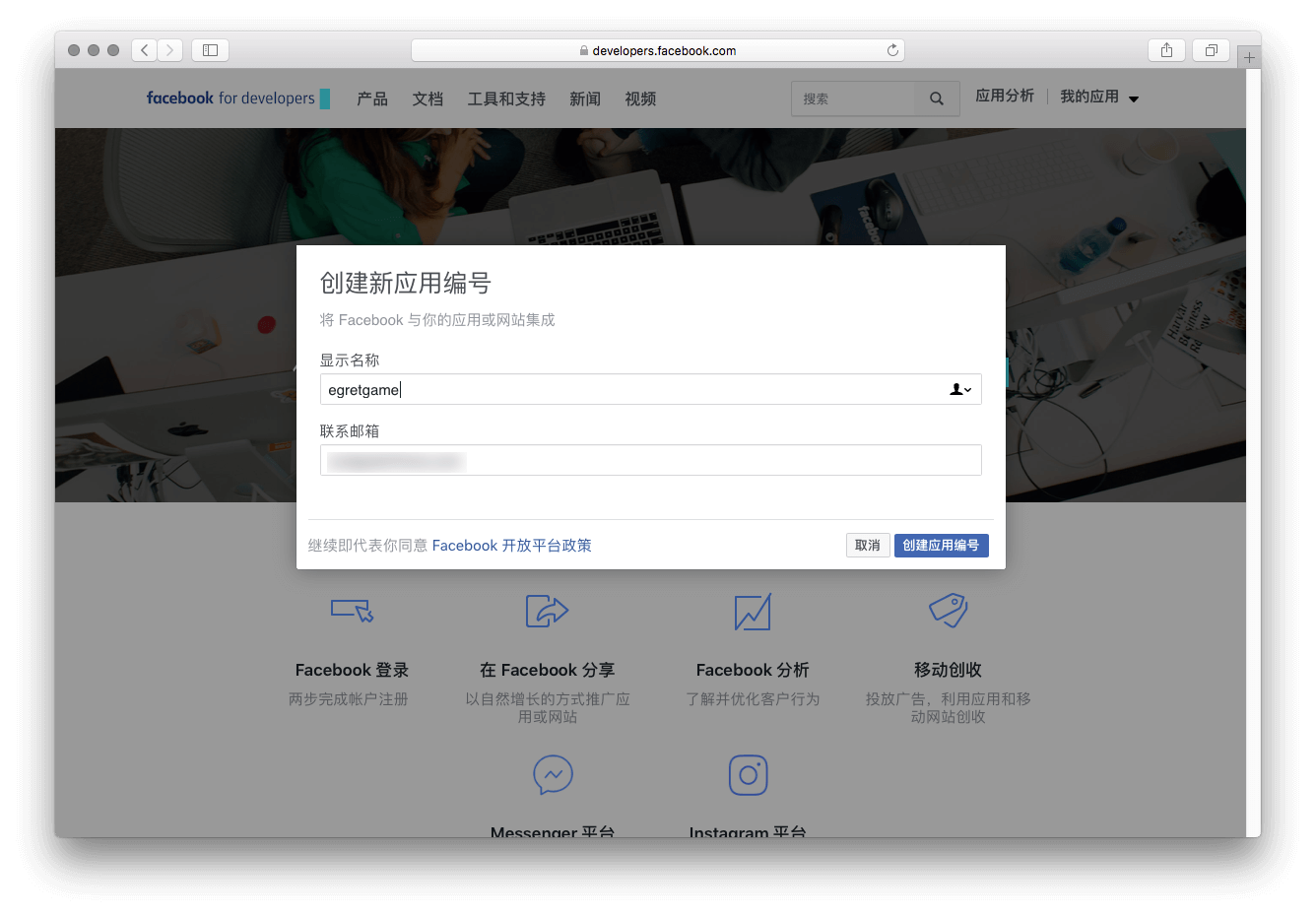

在我的应用中,点击添加新应用,填写应用相关信息,如下图:

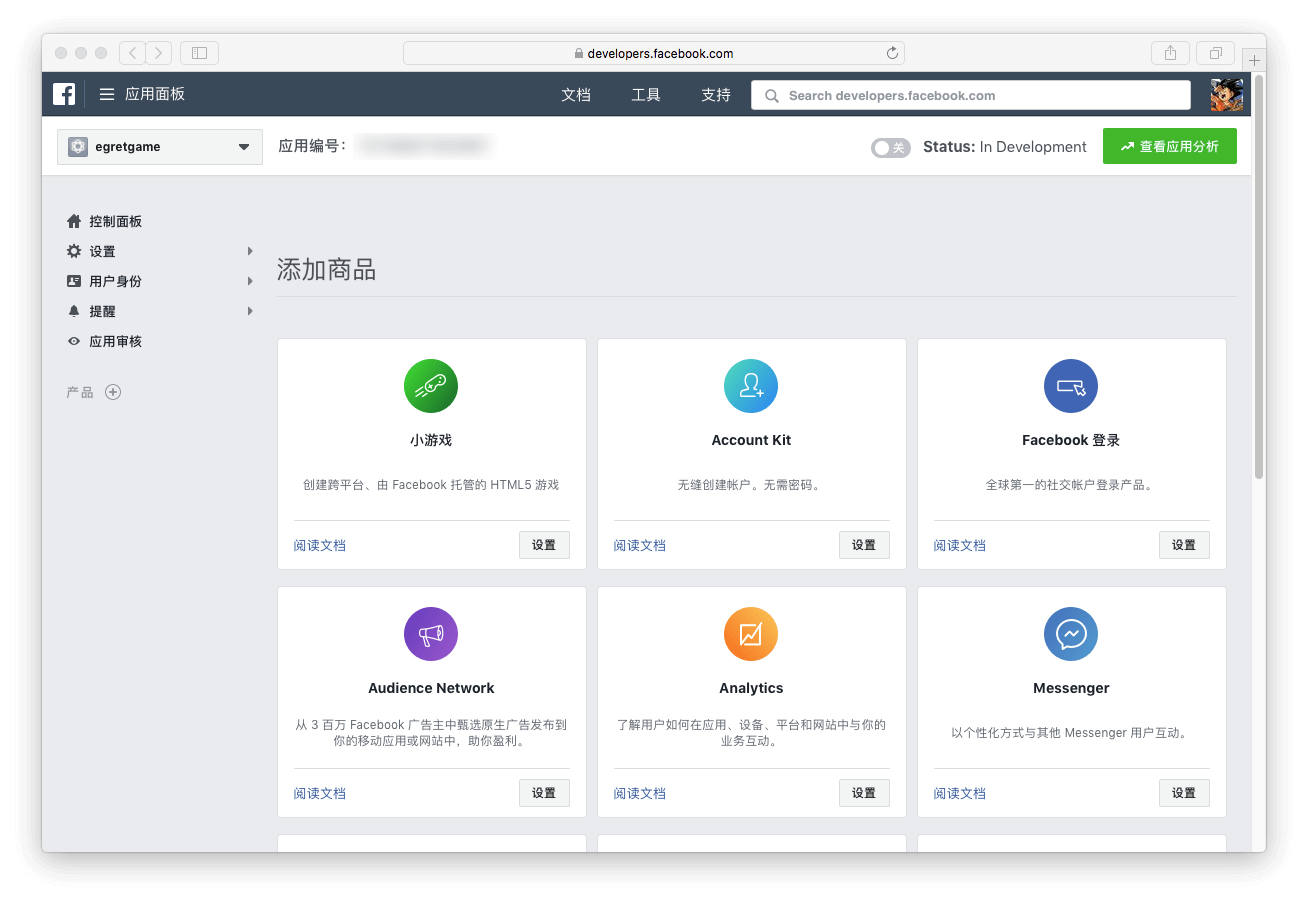

进入到新创建的项目详情面板中,在添加商品中,选择Facebook Instant Games,如图:

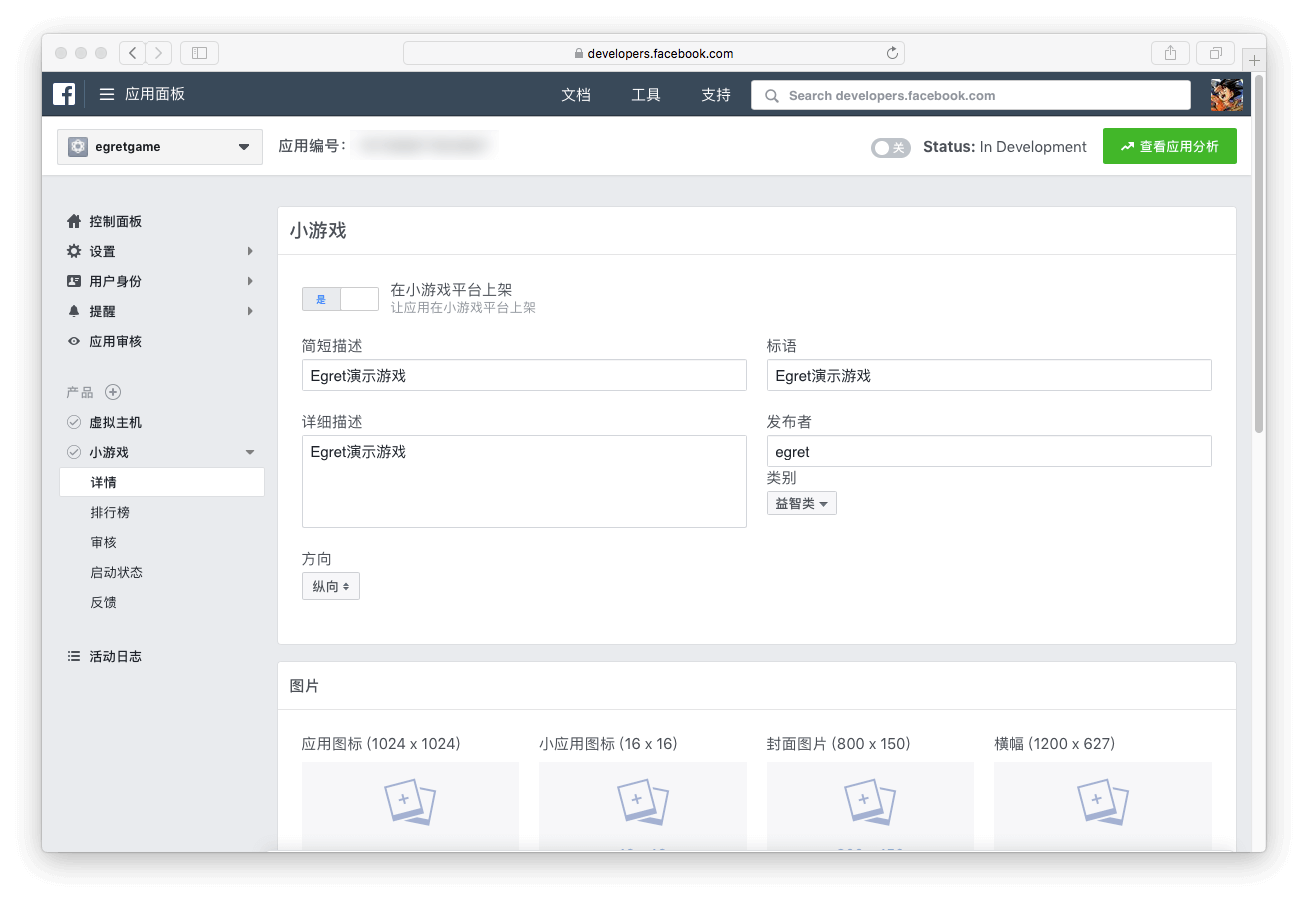

在小游戏详情面板中,填写基本信息

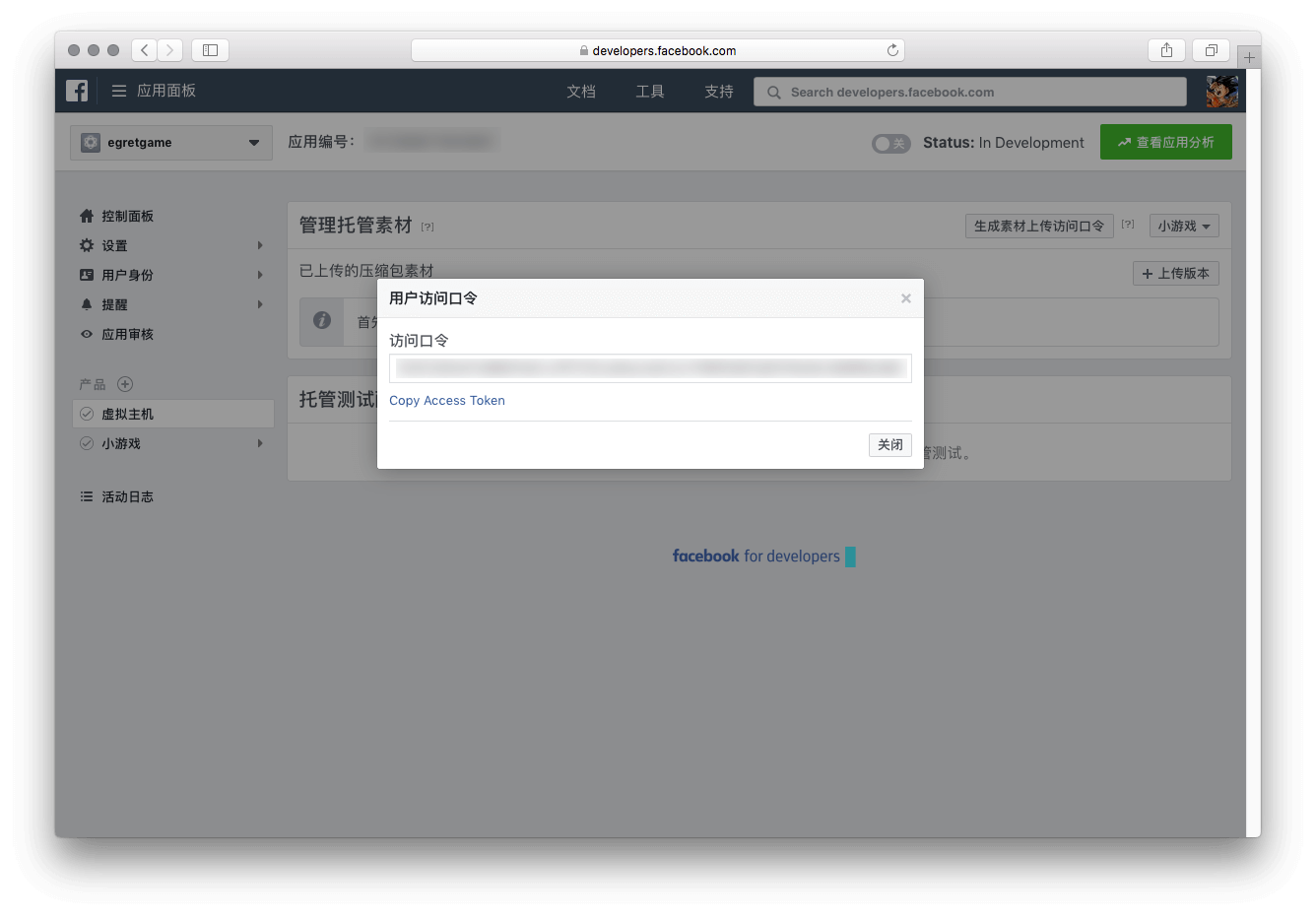

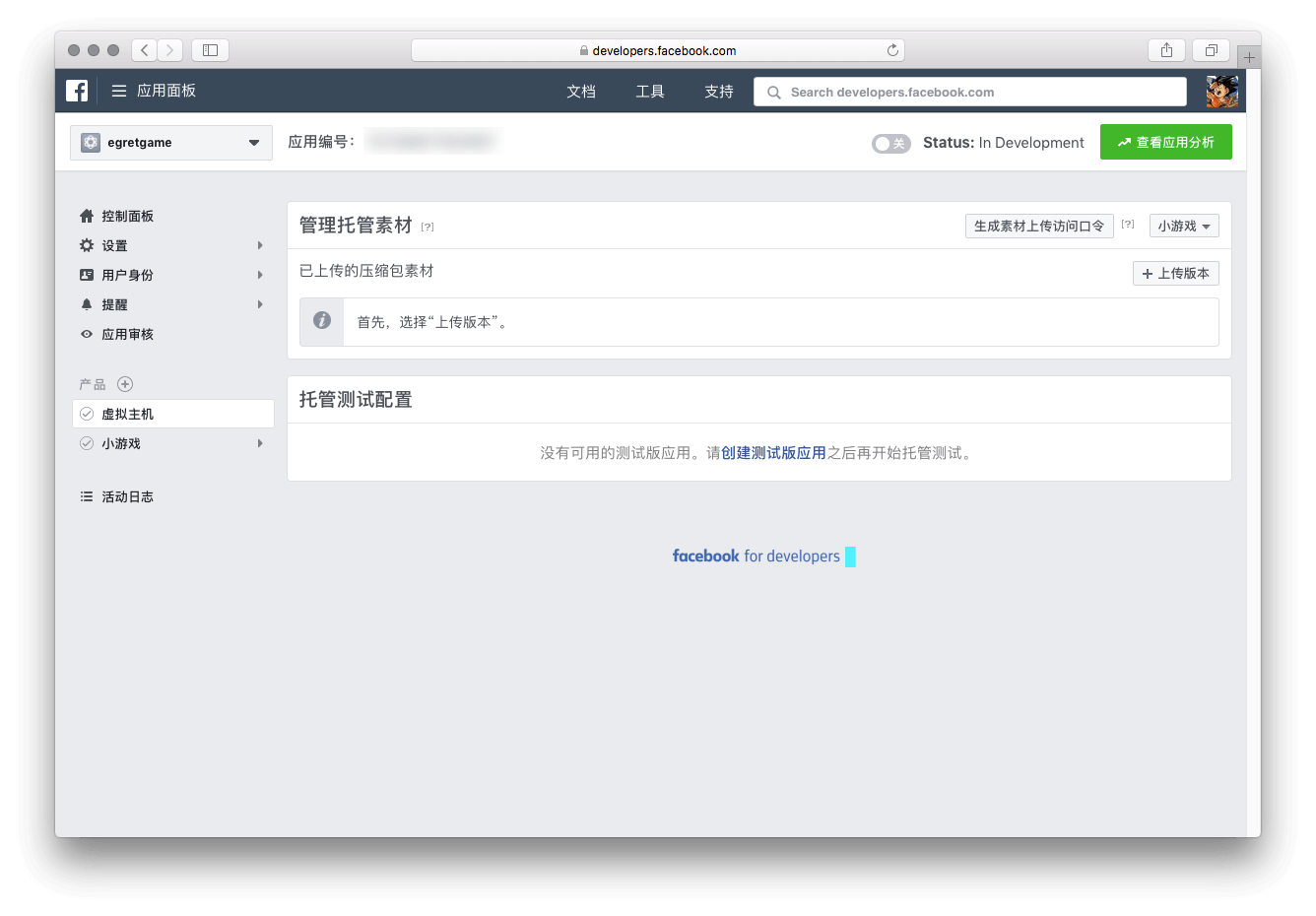

进入到虚拟主机产品,点击生成素材上传访问口令按钮,将生成的口令保存,以备后用,如图:

创建 Egret 项目

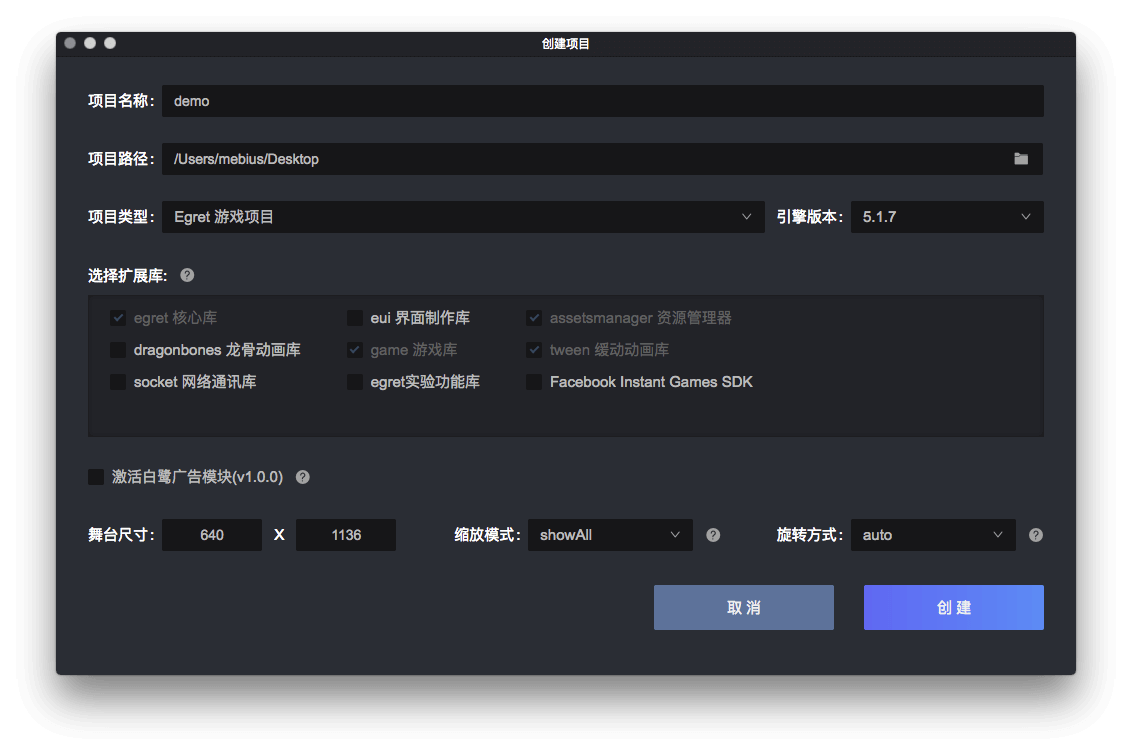

创建Egret项目,扩展库中需要选择Facebook Instant Games

编写代码或迁移您的项目

此处以一个示例项目为例,代码如下:

Button.ts
class  Button  extends  egret.Sprite  {

public constructor(label: string) {

super();

this.drawText(label);

this.addEventListener(egret.TouchEvent.TOUCH_BEGIN, this.touch_begin, this);

this.addEventListener(egret.TouchEvent.TOUCH_END, this.touch_end, this);

this.addEventListener(egret.TouchEvent.TOUCH_TAP, this.click, this);

this.draw();

this.touchEnabled = true;

}

private touch_begin(evt: egret.TouchEvent): void {

this.isUp = false;

this.draw();

}

private touch_end(evt: egret.TouchEvent): void {

this.isUp = true;

this.draw();

}

private click(evt: egret.TouchEvent): void {

this.dispatchEvent(new egret.Event("CHAGE_STAGE"));

}

private isUp: boolean = true;

private draw(): void {

this.graphics.clear();

this.removeChildren();

if (this.isUp) {

this.drawUp();

}

else {

this.drawDown();

}

this.addChild(this.textF);

}

private textF: egret.TextField;

private drawText(label: string): void {

if (this.textF == null) {

let text: egret.TextField = new egret.TextField();

text.text = label;

text.width = (Context.stageWidth - 30) / 2;

text.height = 35;

text.size = 22;

text.verticalAlign = egret.VerticalAlign.MIDDLE;

text.textAlign = egret.HorizontalAlign.CENTER;

this.textF = text;

this.textF.strokeColor = 0x292b2f;

}

}

private drawUp(): void {

this.graphics.beginFill(0x666666);

this.graphics.lineStyle(2, 0x282828);

this.graphics.drawRoundRect(0, 0, (Context.stageWidth - 30) / 2, 35, 15, 15);

this.graphics.endFill();

this.graphics.lineStyle(2, 9474192, 0.5);

this.graphics.moveTo(5, 2);

this.graphics.lineTo((Context.stageWidth - 30) / 2 - 5, 2);

this.graphics.endFill();

this.graphics.lineStyle(2, 0x676767, 0.7);

this.graphics.moveTo(5, 37);

this.graphics.lineTo((Context.stageWidth - 30) / 2 - 5, 37);

this.graphics.endFill();

this.textF.stroke = 0;

}

private drawDown(): void {

this.graphics.beginFill(0x3b3b3b);

this.graphics.lineStyle(2, 0x282828);

this.graphics.drawRoundRect(0, 0, (Context.stageWidth - 30) / 2, 35, 15, 15);

this.graphics.endFill();

this.graphics.lineStyle(2, 0x313131, 0.5);

this.graphics.moveTo(5, 2);

this.graphics.lineTo((Context.stageWidth - 30) / 2 - 5, 2);

this.graphics.endFill();

this.graphics.lineStyle(2, 0x676767, 0.7);

this.graphics.moveTo(5, 37);

this.graphics.lineTo((Context.stageWidth - 30) / 2 - 5, 37);

this.graphics.endFill();

this.textF.stroke = 1;

}

}


Context.ts
class  Context  {

static stageWidth: number = 0;

static stageHeight: number = 0;

public static init(_stage: egret.Stage): void {

Context.stageWidth = _stage.stageWidth;

Context.stageHeight = _stage.stageHeight;

}

}


class  Menu  extends  egret.Sprite  {

public constructor(title: string) {

super();

this.graphics.lineStyle(2, 0x282828);

this.graphics.moveTo(0, 35);

this.graphics.lineTo(Context.stageWidth, 35);

this.graphics.endFill();

this.graphics.lineStyle(2, 0x6a6a6a);

this.graphics.moveTo(0, 37);

this.graphics.lineTo(Context.stageWidth, 37);

this.graphics.endFill();

this.drawText(title);

this.addChild(this.textF);

}

private textF: egret.TextField;

private drawText(label: string): void {

if (this.textF == null) {

let text: egret.TextField = new egret.TextField();

text.text = label;

text.width = Context.stageWidth;

text.height = 35;

text.size = 22;

text.verticalAlign = egret.VerticalAlign.MIDDLE;

text.textAlign = egret.HorizontalAlign.CENTER;

this.textF = text;

this.textF.strokeColor = 0x292b2f;

}

}

private viewNum: number = 0;

public addTestFunc(label: string, callback: Function, target: Object): void {

let btn: Button = new Button(label);

btn.x = (Context.stageWidth - 30) / 2 + 20;

btn.y = 48 + this.viewNum * 47;

this.addChild(btn);

btn.addEventListener("CHAGE_STAGE", callback, target);

this.viewNum++;

}

}


Main.ts
class  Main  extends  egret.DisplayObjectContainer  {

public static menu: any;

private static _that: egret.DisplayObjectContainer;

public constructor() {

super();

this.once(egret.Event.ADDED_TO_STAGE, this.addStage, this);

}

private addStage(evt: egret.Event): void {

this.initializeAsync();

FBInstant.startGameAsync().then(() => {

egret.log("start game");

Main._that = this;

Context.init(this.stage);

Main.menu = new Menu("Egret Facebook SDK Demo");

this.addChild(Main.menu);

this.createMenu();

});

}

public static backMenu(): void {

Main._that.removeChildren();

Main._that.addChild(Main.menu);

}

private createMenu(): void {

Main.menu.addTestFunc("baseinfo", this.baseinfo, this);

Main.menu.addTestFunc("quit", this.quit, this);

Main.menu.addTestFunc("logEvent", this.logEvent, this);

Main.menu.addTestFunc("shareAsync", this.shareAsync, this);

Main.menu.addTestFunc("player", this.player, this);

Main.menu.addTestFunc("getConnectedPlayersAsync", this.getEgretConnectedPlayersAsync, this);

Main.menu.addTestFunc("contextinfo", this.contextinfo, this);

Main.menu.addTestFunc("share", this.share, this);

}
private initializeAsync(): void {
FBInstant.initializeAsync().then(function () {
egret.log("getLocale:", FBInstant.getLocale());
egret.log("getPlatform:", FBInstant.getPlatform());
egret.log("getSDKVersion", FBInstant.getSDKVersion());
egret.log("getSupportedAPIs", FBInstant.getSupportedAPIs());
egret.log("getEntryPointData", FBInstant.getEntryPointData());
});
setTimeout(function () {
FBInstant.setLoadingProgress(100);
}, 1000);
}
private baseinfo() {
egret.log("baseinfo");
egret.log("getLocale:", FBInstant.getLocale());
egret.log("getPlatform:", FBInstant.getPlatform());
egret.log("getSDKVersion", FBInstant.getSDKVersion());
egret.log("getSupportedAPIs", FBInstant.getSupportedAPIs());
egret.log("getEntryPointData", FBInstant.getEntryPointData());
}
private quit(): void {
egret.log("quit");
FBInstant.quit();
}
private logEvent(): void {
egret.log("logEvent");
FBInstant.logEvent("test", 2, { "test": "ta" });
}
private shareAsync(): void {
egret.log("shareAsync");
let data: FBInstant.SharePayload = {
intent: "",
text: "",
image: "",
};
FBInstant.shareAsync(data);
}
private player() {
egret.log("player");
egret.log("player.getID", FBInstant.player.getID());
egret.log("player.getName", FBInstant.player.getName());
egret.log("player.getPhoto", FBInstant.player.getPhoto());
}
private async getEgretConnectedPlayersAsync() {
egret.log("frends info:::");
let datas: FBInstant.ConnectedPlayer[] = await FBInstant.player.getConnectedPlayersAsync();
egret.log(datas);
datas.forEach(element => {
egret.log("player.getID", element.getID());
egret.log("player.getName", element.getName());
egret.log("player.getPhoto", element.getPhoto());
});
}
private contextinfo(): void {
egret.log("Context.getID", FBInstant.context.getID());
egret.log("Context.getType", FBInstant.context.getType());
}
private share(): void {
egret.log("share");
let data: FBInstant.SharePayload = {
intent: "",
text: "",
image: "",
};
FBInstant.shareAsync(data);
}
}

开发建议

我们建议您,在开发过程中为接入预留接口。本机测试过程中可忽略Facebook接口,当需要在Facebook中测试时,再开启相关API。

打包上传

在 index.html 里引入 sdk 的 js 文件。注意:该 js 文件必须像下面这样远程加载,不能放到本地,否则无法通过 Facebook 的审核。

<script src="https://www.facebook.com/assets.php/en_US/fbinstant.6.1.js"></script>

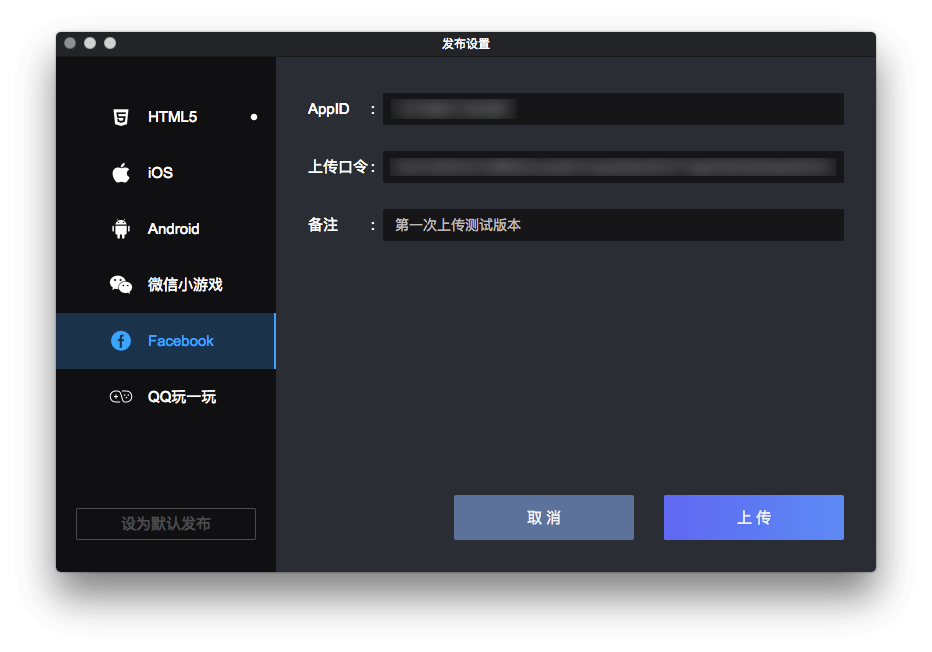

如果您安装了最新版本的Egret Wing,可点击发布按钮打开上传面板。或者可通过Egret Launcher,项目中的发布设置按钮打开上传面板。

选择Facebook选项卡,填写您的APP ID和刚刚生成的上传口令,在备注中,填写此次上传版本的描述信息。

点击上传即可将当前项目打包并推送到Facebook服务器中。

测试

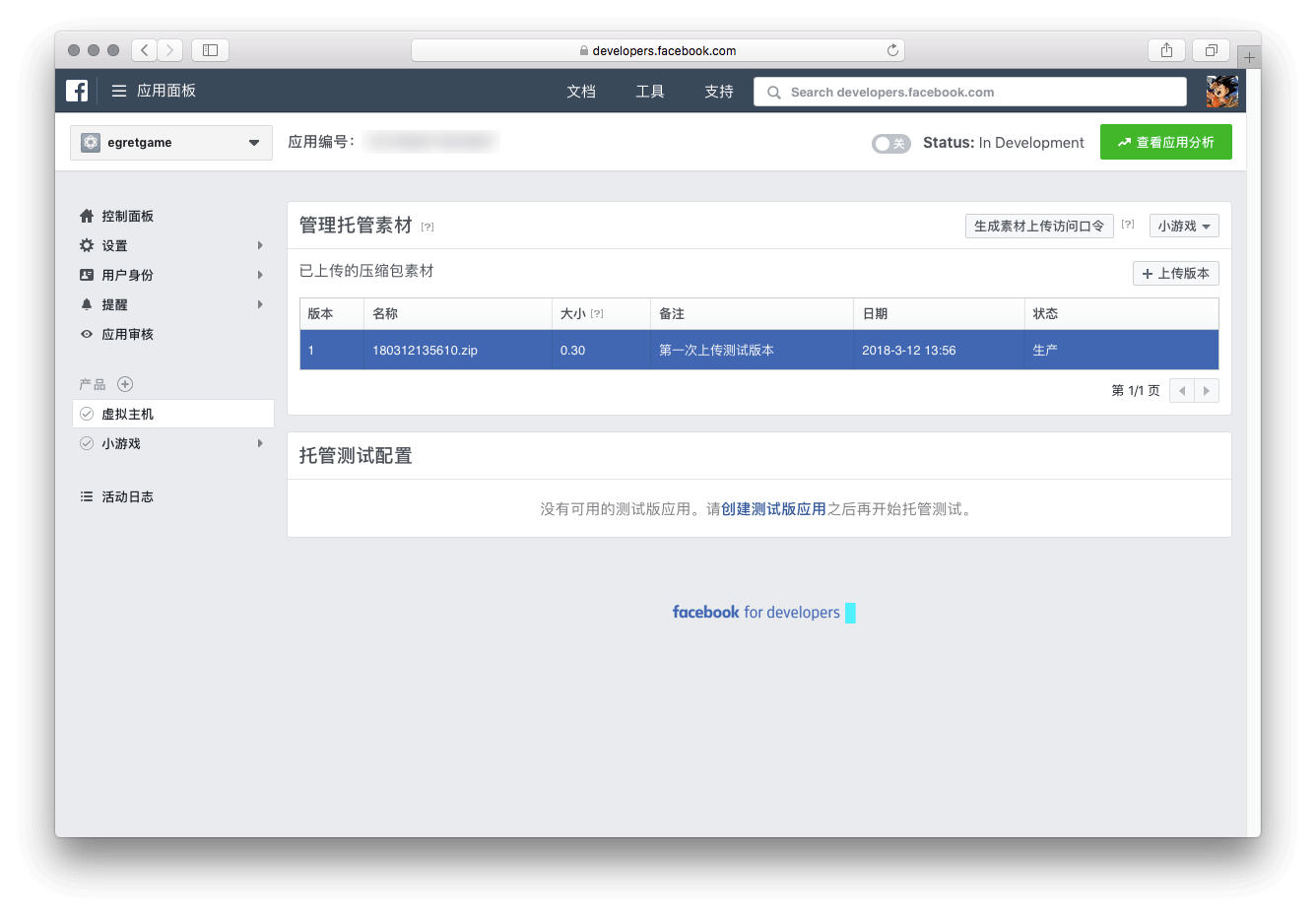

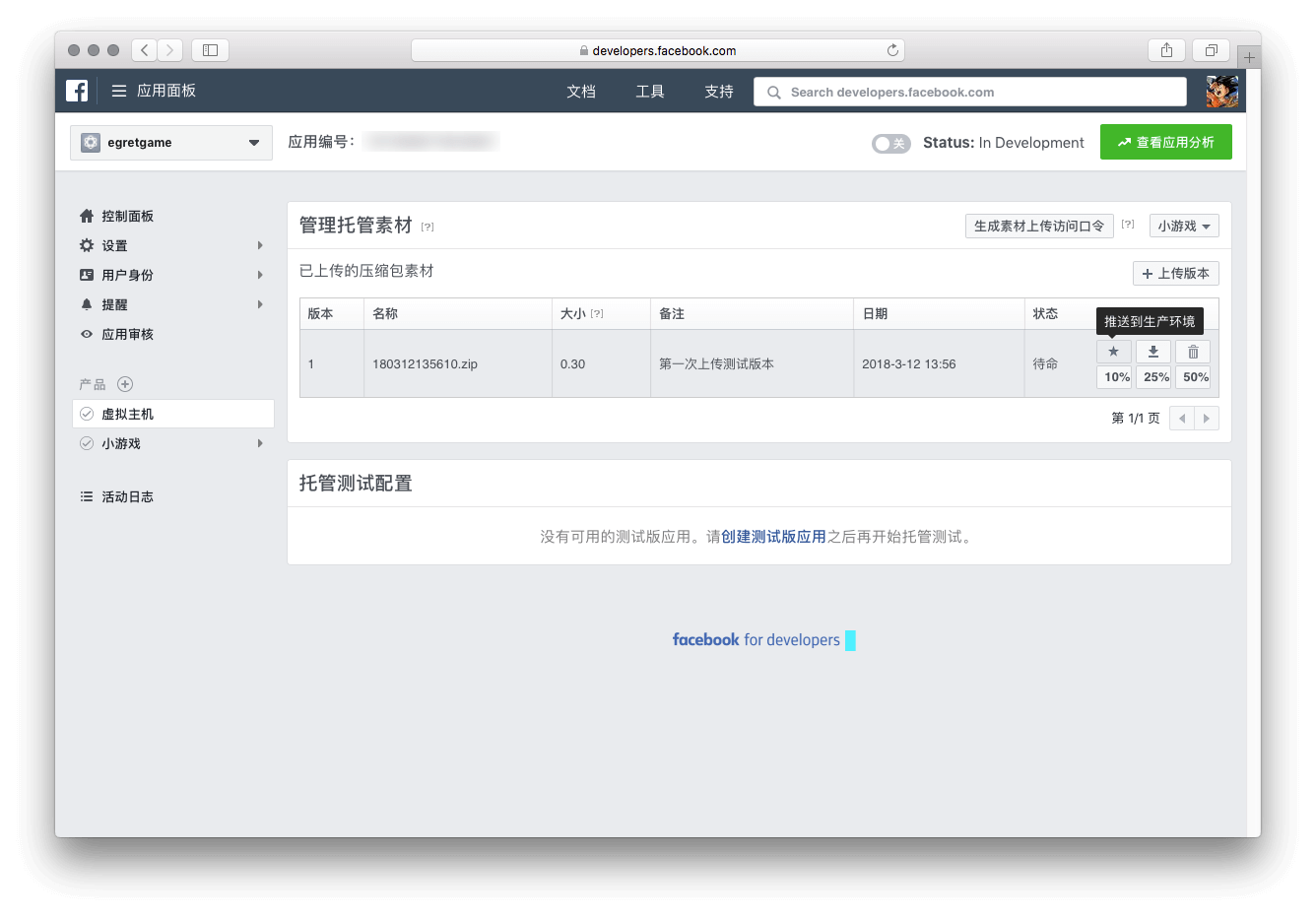

上传成功了,您可在应用管理后台看到刚刚上传的版本。

如要对此版本进行测试,则点击推送到生产环境

当对应版本从“待命”变为“生产”后,则可对此版本进行测试。

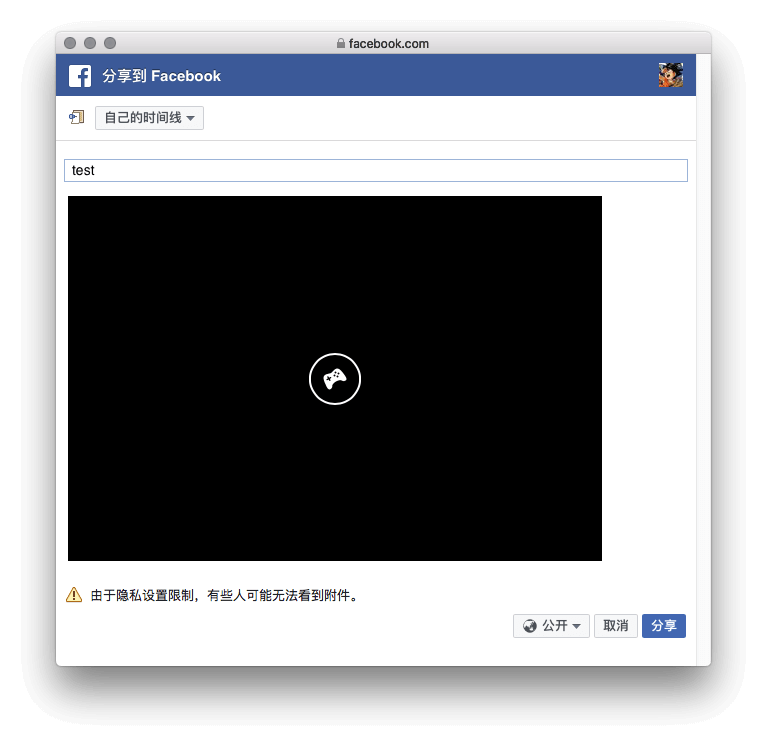

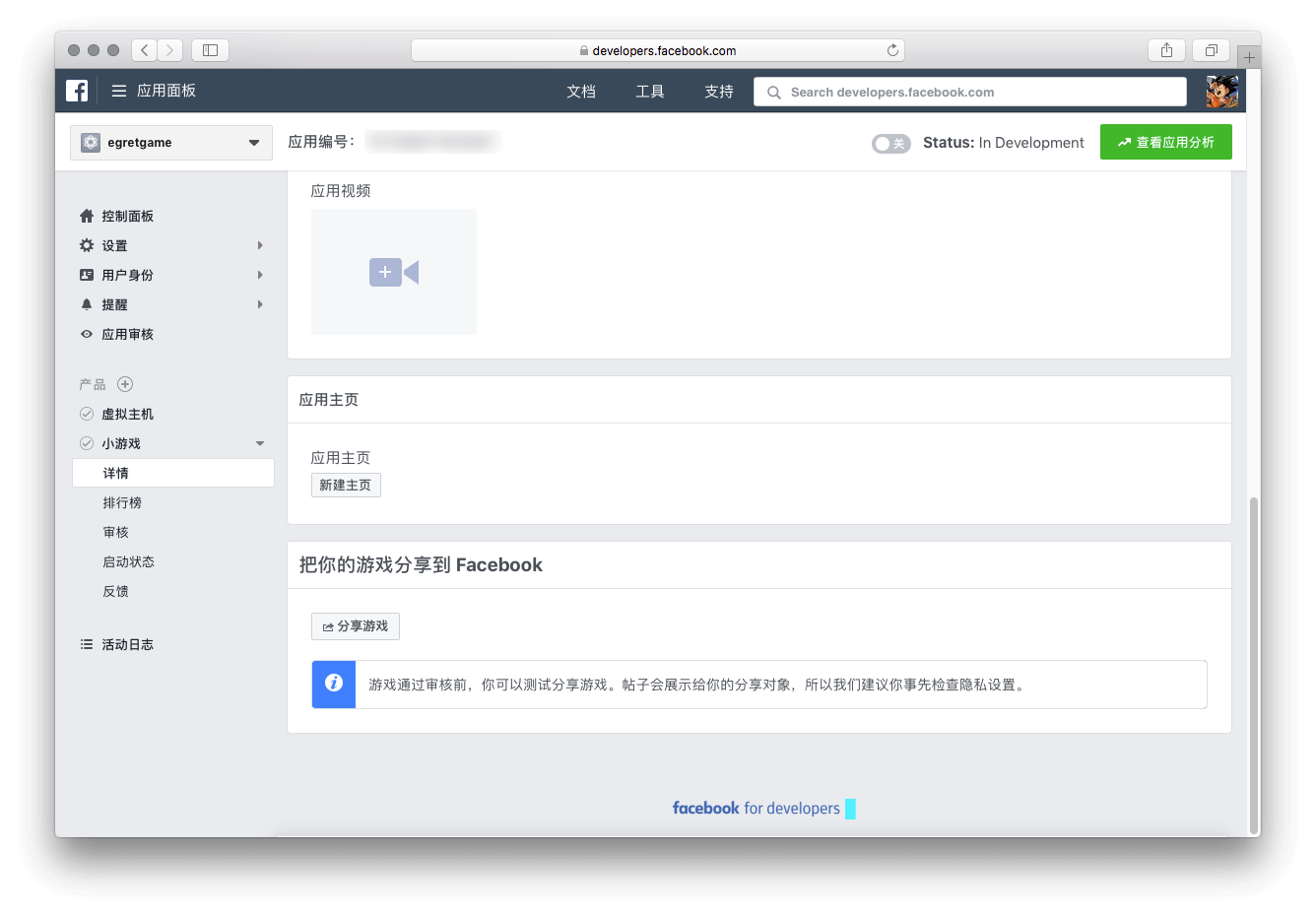

在Facebook Instant Games中,点击详情,最下方的分享游戏,将当前游戏分享至您的Facebook信息流中。

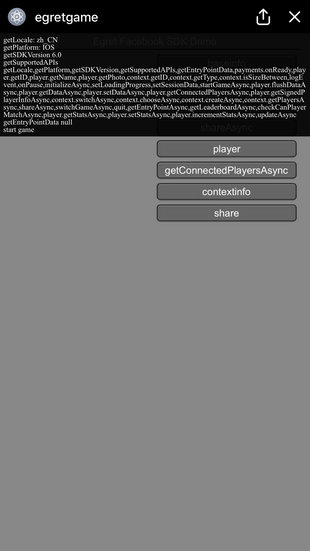

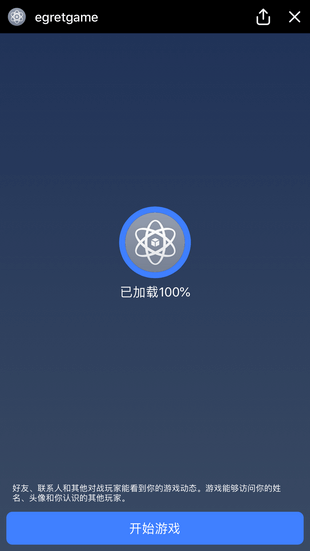

在手机Facebook APP中点击您刚刚分享的游戏,可打开游戏进行测试。
